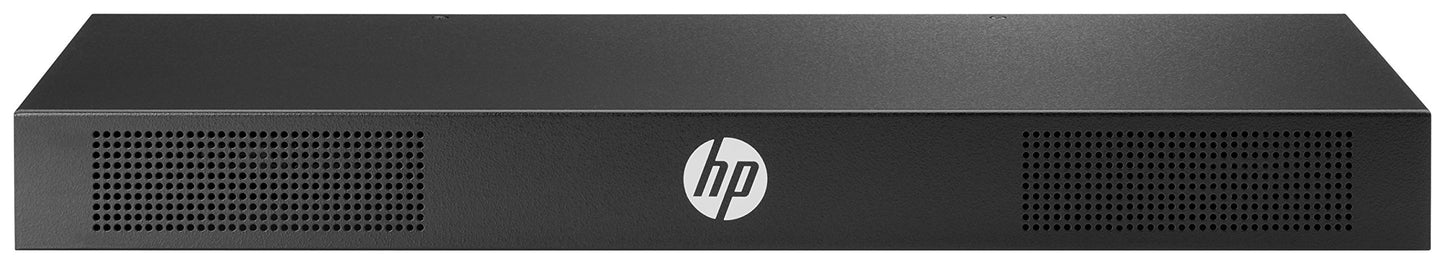

HPE (AF653A) KVM Console G3 Switch 0x2x16-16 Ports - USB - CAT5 - Cascadable

• HP AF653A
• View and Manage up to 256 Servers through a Single User Interface
• 4-Port, 8-Port and 16-Port Models with Multiple Installation and Server Connection Options
• Enclosure Type: Rack-mountable

Brand New in Retail Box.

Hpe - Kvm Console G3 Switch 0x2x16 - Kvm Switch - 16 Ports - Rack-mountable (af653a).



Key Features :

• Device Type : Kvm Switch - 16 Ports - Cascadable


• Enclosure Type : Rack-mountable


• Subtype : Kvm


• Ports : 16 X Kvm Port(s)


• Kvm Local Users Qty : 2 Local Users


• Server Connection Via Twisted Pair : Cat5


• Keyboard / Mouse Interface : Usb


• Features : On-screen Display



  Expansion / Connectivity :

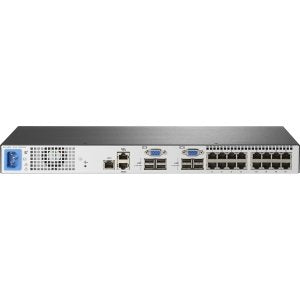

• Interfaces : 16 X Kvm - Rj-45  1 X - Management  1 X Cascading - Rj-45  2 X Vga - Hd-15  4 X Keyboard (usb) - Type A  4 X Mouse (usb) - Type A

Description:

HP Server Console Switches are key components for rack mount implementations (a console represents one keyboard, video monitor, and mouse (KVM) attached to a server). The family of HP Server Console Switches allows multiple servers in a rack to be accessed and managed by one keyboard, monitor, and mouse. By using a console switch, as many as 256 computers running different operating systems can be managed. The 8-Port and 16-port Server Console Switches feature an On-Screen Display (OSD) interface, which has intuitive menus for accessing each attached computer or serial attached device. Equipment can be identified by a user-defined name or sequentially by number, enabling easy access. HP Server Console Switches can be connected in a tiered fashion, to increase server access from eight servers to as many as 256 servers.
