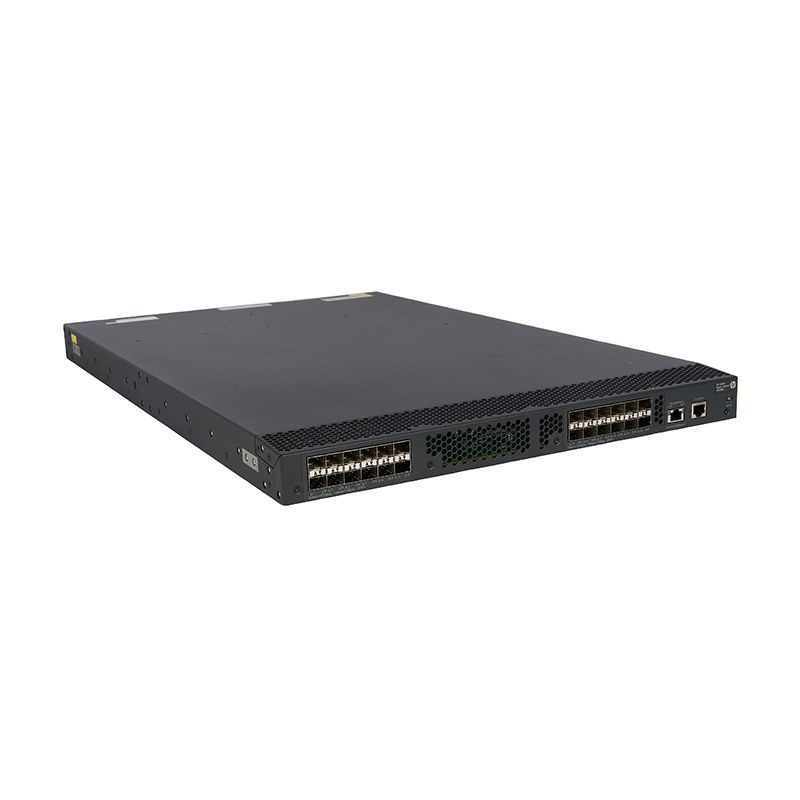

HPE JG296A 5920AF 24XG Managed Switch 24 x 1G/10G SFP+ Ports

• Product Number: JG296A
• Hp 5920af-24xg Switch - Manageable - 24 X Expansion Slots - 24 X Network - Gigabit Ethernet, 10 Gigabit Ethernet - 24 X Sfp+ Slots - 3 Layer Supported - 1u High - Rack-mountable - 1 Year - Rohs Compliance

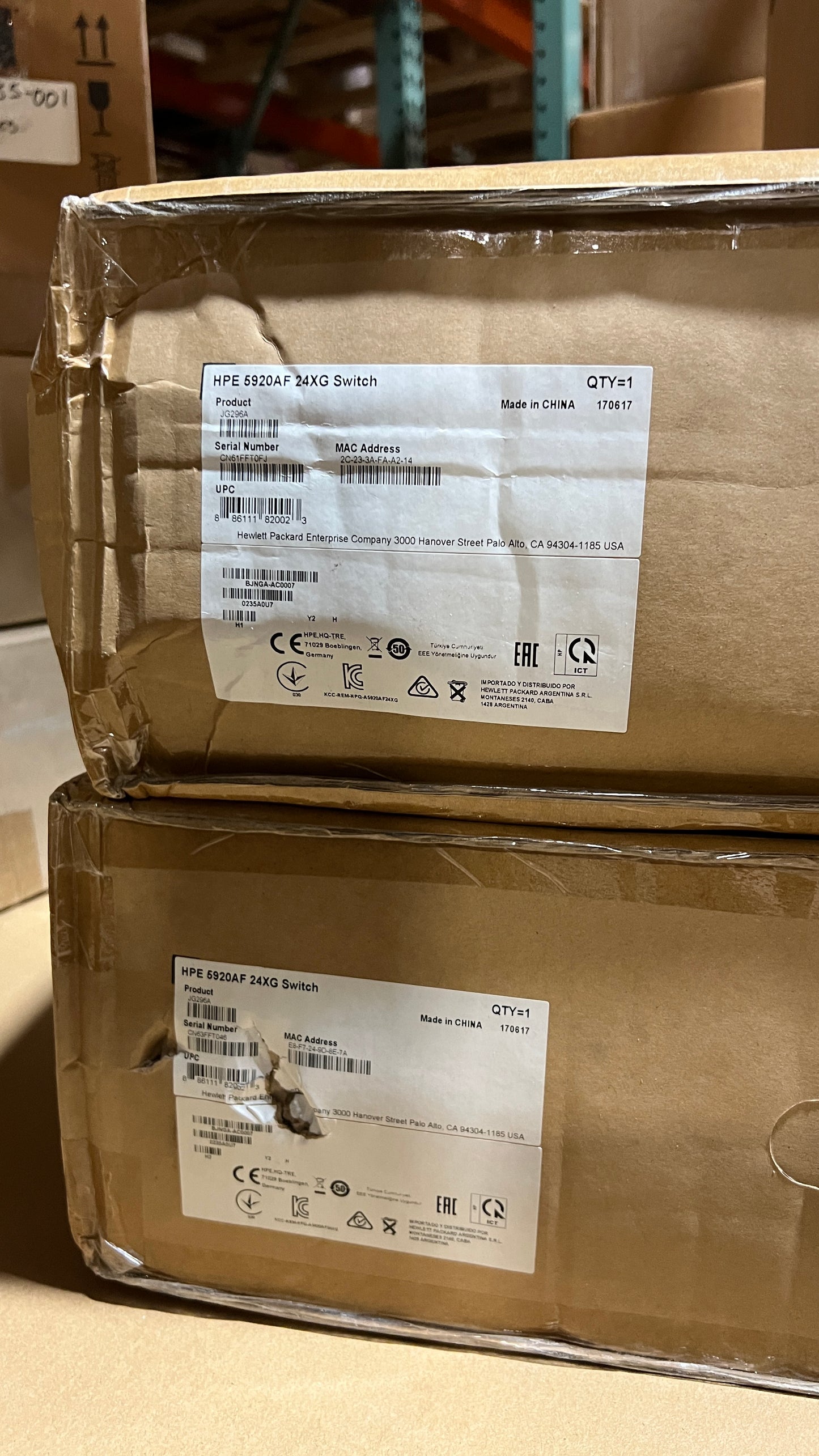

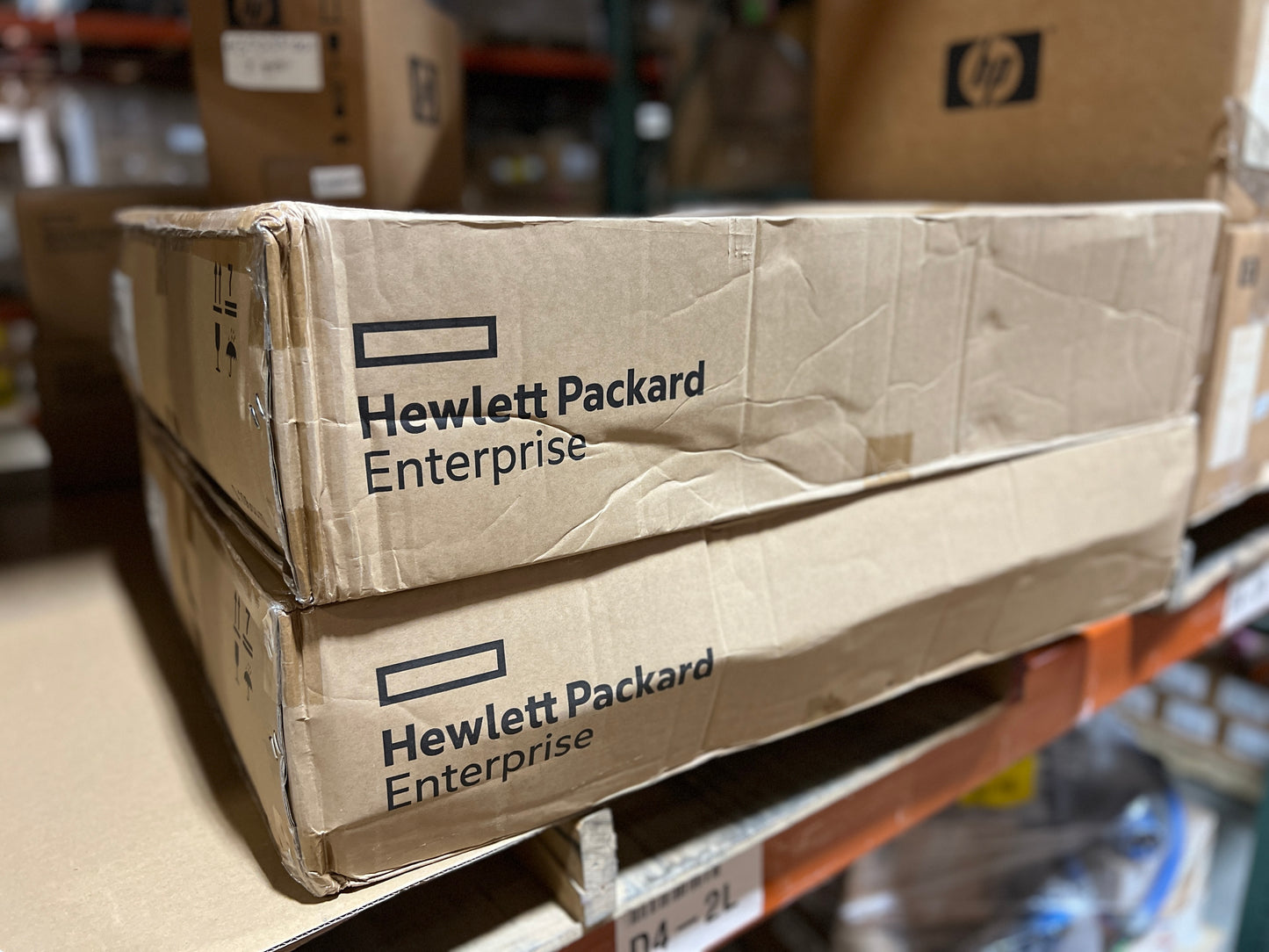

Brand New in Retail Box.

The HP 5920 Switch Series Is Made Up Of High-density 10 Gbe, Ultra-deep Packet Buffering, Top-of-rack (tor) Switches. The Series Switches Are Part Of The HP Flex fabric Solution Module Of The HP Flexnetwork Architecture And Are Ideally Suited For Deployments At The Server Access Layer Of Large Enterprise Data Centers. They Are Also Designed For Content Delivery Networks, Especially When Used To Eliminate Network Congestion At The I/o That Is Associated With The Heavy Use Of Server Virtualization, As Well As Bursty Multimedia, Storage Applications, And Other Critical Services. With The Increase In Virtualized Applications And Server-to-server Traffic, Customers Now Require Tor Switch Innovations That Will Meet Their Needs For Higher-performance Server Connectivity, Convergence Of Ethernet And Storage Traffic, The Capability To Handle Virtual Environments, And Ultra-deep Packet Buffering All In A Single Device.

Detail overview

Hpe - 5920AF-24xG Switch - 24 Ports - Managed.  (JG296A).

Key Features :

Device Type : Switch - 24 Ports - Managed

Enclosure Type : Rack-mountable - 1u

Subtype : 10 Gigabit Ethernet

Ports : 24 X 1 Gigabit / 10 Gigabit Sfp+

Performance : Throughput : 367 Million Pps Routing/switching Capacity : 480 Gbps

Capacity : Routing Table Entries : 16000

Mac Address Table Size : 128k Entries

Jumbo Frame Support : Yes

Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Static Ip Routing, Ecmp

Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Http, Cli

Authentication Method : Secure Shell (ssh), Secure Shell V.2 (ssh2)

Features : Dhcp Support, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Weighted Fair Queuing (wfq), Weighted Random Early Detection (wred), Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos)

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ab (lldp)

Ram : 2 Gb - Sdram

Flash Memory : 128 Mb

Expansion / Connectivity :

Interfaces : 24 X 10gb Ethernet - Sfp+ Serial : 1 X Console - Rj-45 - Management 1 X Rj-45 - Management

Power :

Power Device : Power Supply - Hot-plug - Plug-in Module

Installed Qty : 0 (installed) / 2 (max)

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Voltage Required : Ac 120/230 V ( 50/60 Hz )
