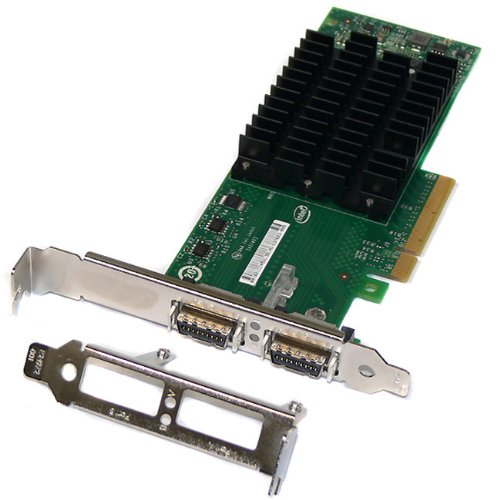

Intel 10 Gigabit CX4 Dual Port Server Adapter Used

• Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors
• Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
• Accelerates I/O with higher throughput and lower CPU utilization by offloading processing overhead
• Provides centralized storage area network (SAN) management at a lower cost than competing iSCSI solutions
• Tested for Key Functions, R2/Ready for Resale

Shipping Depth: 5.5 Shipping Height: 1.3 Shipping Width: 8.9 Master Pack Qty:
5 General Information Manufacturer: Intel Corporation Manufacturer Part
Number: EXPX9502CX4 Brand Name: Intel Product Series: 82598EB Product Name: 10
Gigabit CX4 Dual Port Server Adapter Marketing Information: Following the
802.ak specification, the Intel 10 Gigabit CX4 Dual Port Server Adapter offers
the lowest cost per port of all the current 10GbE interconnects. The low-
profile PCI Express form factor combined with two CX4 ports and a low-power
envelope for energy efficiency, makes the board ideal for slot-constrained
environments. 10GBASE-CX4 adapters are well-suited for customers with shorter
distance and low latency requirements. 10 Gigabit Ethernet has moved past the
early adoption stage and is rapidly becoming mainstay for backbones within
enterprise and service provider networks. The escalating deployments of
servers with multi-core processors and demanding applications such as High
Performance Computing (HPC), database clusters, and video on demand are
driving the need for 10 Gigabit connections. Intel 10 Gigabit CX4 Dual Port
Server Adapter - It Just Works! Product Type: 10Gigabit Ethernet Card
Interfaces/Ports Host Interface: PCI Express x8 Number of Ports: 2
Interfaces/Ports: 2 x Network Network & Communication Network Technology:
10GBase-CX4 Physical Characteristics Card Height: Low-profile Card Height:
Full-height Form Factor: Internal Height: 4.7 Width: 6.6 Thickness: 2.7 Weight
(Approximate): 1.00 lb Miscellaneous Package Contents: 10 Gigabit CX4 Dual
Port Server Adapter Informational CD Bracket Assembly Required: No Green
Compliant: Yes Green Compliance Certificate/Authority: RoHS Country of Origin:
Malaysia Warranty Standard Warranty: Lifetime Limited
